250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB

Brand Name : TIANMA

Model Number : TMS150XG1-10TB

Certification : Rohs,CE,FCC

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass oled

color : 16.7m colors

model : WLED

style : wide screen high resolution 1024*768

brightness : 250cd

connector : 20

contrast ratio : 600:1

working time : 40k hours

Contact Now

  • Panel Brand
    AVIC
  • Panel Model
    TMS150XG1-10TB
  • Panel Size
    15.0"
  • Panel Type
    a-Si TFT-LCD, LCM
  • Resolution
    1024(RGB)×768 , XGA
  • Pixel Format
    RGB Vertical Stripe
  • Display Area
    304.128(W)×228.096(H) mm
  • Bezel Opening
    307.4(W)×231.3(H) mm
  • Outline Size
    326.5(W)×253.5(H) ×12(D) mm
  • Surface
    Antiglare
  • Brightness
    250 cd/m² (Typ.)
  • Contrast Ratio
    600:1 (Typ.) (TM)
  • Viewing Angle
    80/80/80/80 (Typ.)(CR≥10)
  • Display Mode
    TN, Normally White, Transmissive
  • Best View on
    -
  • Response Time
    2/6 (Typ.)(Tr/Td)
  • Display Colors
    16.7M 60% (CIE1931)
  • Lamp Type
    2 pcs CCFL , 40K hours , Without Driver
  • Frequency
    60Hz
  • Touch Screen
    Without
  • Panel Weight
    1.00Kgs (Typ.)
  • Application
  • Signal Interface
  • LVDS (1 ch, 8-bit) , 20 pins , Connector
  • Input Voltage
  • 3.3V (Typ.)
  • Environment
  • Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C

250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB

The TMS150XG1-10TB is a 15.0 inch diagonal a-Si TFT-LCD display panel product from Shanghai AVIC Optoelectronics Co. Ltd. (hereafter called AVIC), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 55°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: Antiglare Surface, Wide Viewing Angle, Landscape type , TC0’5.0 Compliance. Based on its features, einklcd recommend that this model be applied to Desktop Monitor etc. According to the information stored in einklcd this model mass production on Q2, 2010 and last shippment on Q3, 2014, Now this model is discontinued. We inputted this model's specification on Nov 8 2012 for the first time, and the latest update on Sep 3 2014. If you want to embed TMS150XG1-10TB LCM in your future product, einklcd strongly recommend that you should contact with AVIC or it's agent to learn lateast production and specification detail. The TMS150XG1-10TB production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

All our LCD LED screen monitor module panel products will be full test one by one before sending .


Product Tags:

touch screen computer monitor



high resolution touch screen monitor


China 250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB wholesale

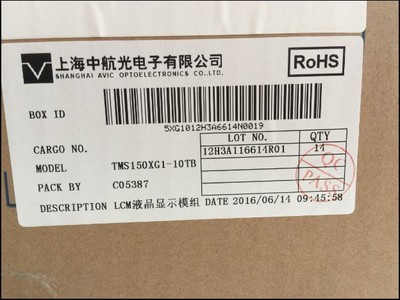

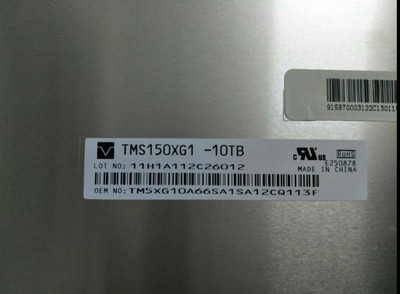

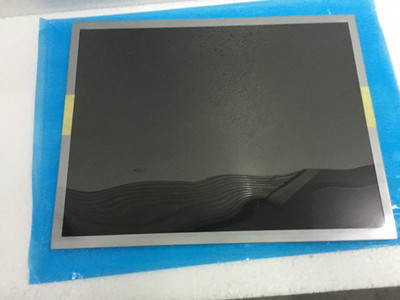

250CD/M2 20 Pin Touch Screen Computer Monitor TIANMA 15" LCD Model TMS150XG1-10TB Images
