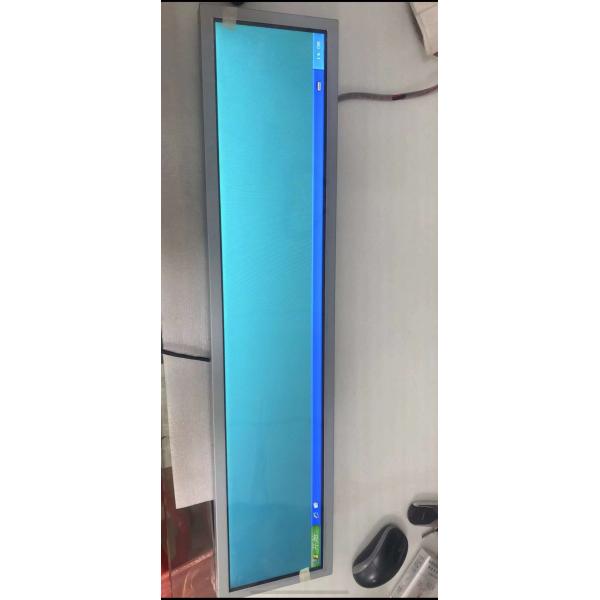

BOE 28 Inch Stretched LCD Display DV280FBM-NB0 with 800cd/m2 Brightness and 1366*256 Pixels Resolution

Product Categories
FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BOE 28 Inch Stretched LCD Display DV280FBM-NB0 with 800cd/m2 Brightness and 1366*256 Pixels Resolution

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39

Brand Name : BOE

Model Number : DV280FBM-NB0

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass oled

color : 16.7m colors

model : WLED

style : wide screen high resolution 1366*256pixels

brightness : 800cd

connector : 30pin

contrast ratio : 1200:1

working life : 30K hours

signal interface : LVDS

Input voltage : 12V

Contact Now

49PPI Stretched Bar LCD Panel DV280FBM-NB0
Product Overview
BOE 28-inch Stretched Bar LCD Panel DV280FBM-NB0 featuring 1366*256 resolution, 49PPI pixel density, and 800cd/m² high brightness. This industrial-grade display utilizes LVDS interface with 30-pin connector and 12V power input.
Key Specifications
Display Size 28.0 inch diagonal
Resolution 1366 * 256 pixels
Pixel Density 49 PPI
Brightness 800 cd/m²
Interface LVDS, 30-pin
Power Supply 12V
Backlight WLED with integrated driver
Surface Matte finish
Technical Features
  • a-Si TFT-LCD display technology
  • Integrated WLED backlight system with driver
  • Stretched bar display format (1/3 cut of 31.5 inch panel)
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -20°C to 60°C
  • Maximum vibration tolerance: 1.0G (9.8 m/s²)
  • Non-touch screen configuration
Recommended Applications
Ideal for digital signage solutions, stretched bar LCD displays, and industrial information display systems requiring high brightness and elongated format.
BOE 28 Inch Stretched LCD Display DV280FBM-NB0 with 800cd/m2 Brightness and 1366*256 Pixels Resolution BOE 28 Inch Stretched LCD Display DV280FBM-NB0 with 800cd/m2 Brightness and 1366*256 Pixels Resolution BOE 28 Inch Stretched LCD Display DV280FBM-NB0 with 800cd/m2 Brightness and 1366*256 Pixels Resolution
Production Status Note: This model entered mass production in Q1 2015 and is currently discontinued. For integration into new products, contact BOE or authorized distributors for latest production availability and specifications.
Specification information first entered on June 3, 2015, with latest update on July 31, 2021. Production status information is for reference only and should not be used as the sole basis for decision making.
